CIPP Lining: How a Sewer Pipe Gets Rebuilt from the Inside

A CIPP liner bonds to the interior wall of the host pipe. Any grease, scale, sediment, or root debris left in place prevents that bond. So the first step is always a high-pressure hydro-jet pass — typically at 4,000 PSI for residential laterals — run through the entire affected section. The nozzle rotates as it travels, hitting the pipe wall at multiple angles to break up buildup rather than just push it downstream.

After the hydro-jet pass, we run a camera through the cleaned section. This second look confirms the pipe wall is clear and gives us the precise measurement data we need: internal diameter at multiple points, any remaining joint offsets, and the exact length of liner required. In older South Bay neighborhoods — Old Torrance, Gardena's Moneta district, pre-WWII clay-tile laterals in San Pedro's Vinegar Hill — that post-clean camera pass frequently reveals details the first inspection missed because the pipe wall was obscured by debris.

If we find roots remaining after hydro-jetting, we use a mechanical root cutter before proceeding. Skipping this step and lining over residual roots is how you end up with a liner that re-roots within two years.

The liner is a flexible felt tube — typically a non-woven polyester or fiberglass fabric — that has been saturated with a thermosetting resin. Common resin types are epoxy, polyester, and vinyl ester. Each has different cure characteristics and chemical resistance profiles, but all three produce a rigid pipe once cured. For standard residential sewer applications, we use materials that meet ASTM F1216 — the specification that defines the structural requirements for cured-in-place pipe.

The liner is manufactured to a specific wall thickness calculated from the host pipe's diameter, burial depth, and condition class. A structurally deteriorated host pipe (classified as fully deteriorated) requires a thicker liner because the liner must carry all loads independently. A host pipe rated as partially deteriorated allows a thinner liner because it still provides some soil-load support. This distinction matters: a liner sized for a partially deteriorated pipe installed in a fully deteriorated host will eventually fail under load.

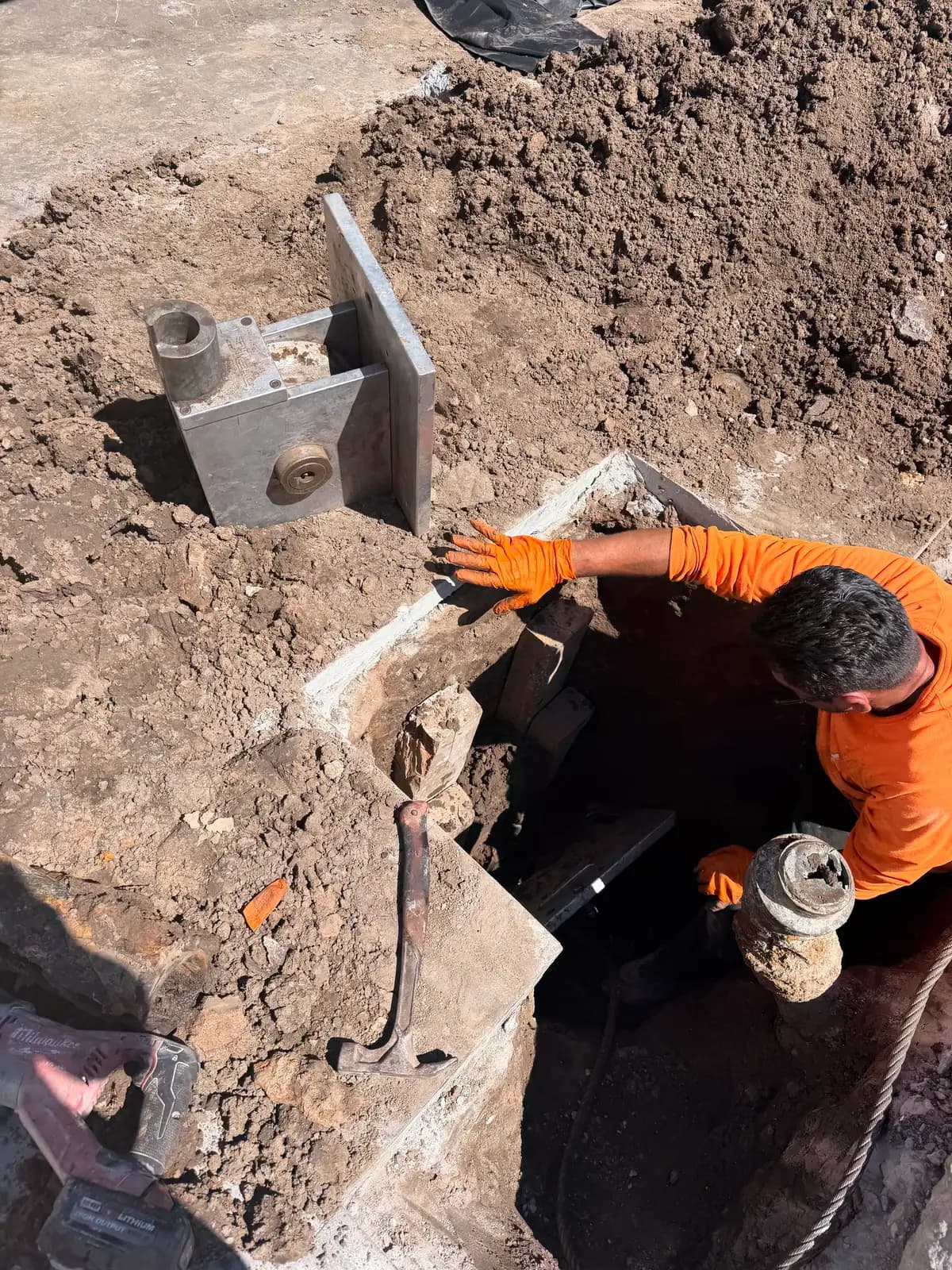

The resin-saturated liner is installed by inversion — a process where the liner is turned inside-out as it travels through the pipe. Compressed air or water pressure pushes the liner forward while simultaneously turning it outward against the host pipe wall. This is done through a single access point, usually a cleanout or a small access pit at the upstream end of the section being lined.

As the liner inverts, the resin-coated face presses against the interior of the host pipe. This contact is what creates the bond. The inversion pressure is held constant throughout insertion to prevent the liner from pulling away from the wall or bunching. The result, before curing, looks like an inflated tube pressed firmly against the inside of the existing pipe — and that's exactly what it is.

For South Bay jobs where access is constrained — narrow lots in Hermosa Beach's Sand Section, or residential alleys in the 360 District in Hawthorne — the single-access-point nature of CIPP inversion is a significant advantage. You're not staging equipment at both ends of the lateral.

The liner stays inflated and pressed against the host pipe wall while the resin cures. There are three common cure methods: ambient temperature (passive), hot water, and UV light. Hot water cure and UV cure are the two standard methods for residential lateral work.

Hot water cure circulates water heated to a specific temperature profile through the inverted liner. The heat accelerates the resin crosslinking reaction that converts the saturated felt tube into a rigid pipe. Cure temperatures and hold times are specified by the resin manufacturer and must be followed precisely — under-curing produces a liner with reduced flexural strength, while over-heating can cause delamination. UV cure passes a calibrated light train through the liner; the UV energy triggers the same crosslinking reaction. UV cure is faster and generates less heat, which is useful in situations where soil temperatures or pipe geometry could affect the water cure process.

During curing, the liner holds shape against the host pipe wall. When the resin reaches full cure, the liner is a rigid tube with its own structural properties. The inflation pressure is released, the end is trimmed, and you have a new pipe.

The distinction between CIPP and a pipe repair matters legally, structurally, and practically. A repair addresses a discrete failure point. CIPP replaces the structural function of the entire lined section. Once cured, the CIPP liner carries loads independently of the host pipe — ground load, traffic load, hydrostatic pressure. The host pipe becomes, in effect, a mold that was left in place. If the host pipe were to deteriorate further or fracture, the CIPP liner would continue to function on its own.

The flow characteristics also change. A 6-inch clay lateral from 1938 typically has a roughness coefficient (Manning's n) around 0.013–0.014 due to surface degradation, joint lips, and root intrusion scarring. A cured CIPP liner in that same pipe runs at n = 0.010–0.011. The bore diameter is slightly reduced — typically 6 to 12 percent depending on wall thickness — but the smoother surface more than compensates in hydraulic capacity for most residential flow rates.

For a deeper comparison of CIPP against pipe bursting — which uses an entirely different mechanism to replace rather than reline the host — see our [trenchless sewer repair services](/services/trenchless) overview, which covers both methods and the conditions that favor each.

After the liner cures and the ends are trimmed, we run a final camera inspection through the full lined section. This confirms wall adhesion, checks for wrinkles or bridging (areas where the liner didn't fully contact the host pipe), verifies that the resin has cured uniformly, and documents the finished bore diameter. Any defect identified at this stage — before the job is closed — is addressable. A wrinkle found six months later after a callback is a much harder problem.

Lateral reinstatement is the step that gets skipped on poorly supervised CIPP jobs. During inversion and curing, the liner covers any service connections that branch off the main lateral — typically connections from floor drains, toilets, or branch lines inside older homes. These openings must be robotically cut from inside the new liner using a remote-controlled cutter. Miss one, and you've blocked a drain connection with cured resin. We verify every known connection against the pre-installation camera footage before we close the job.

If you're dealing with a deteriorating lateral in Torrance, Redondo Beach, Carson, or anywhere else in the South Bay and want to know whether the pipe is a candidate for lining, a [camera inspection](/services/trenchless/camera-inspection) gives you the data. For city-specific guidance on trenchless work in Gardena — where the 1950s-to-1970s build-out means a high concentration of original clay and cast-iron laterals — see our [Gardena trenchless plumbing](/service-areas/gardena/trenchless) page.

CIPP works well on pipes that are cracked, root-infiltrated, or showing longitudinal fractures but still retain their basic geometry. Several conditions disqualify a pipe from lining. Significant joint offset — where the bell end of one pipe section has shifted laterally or vertically more than about 30 percent of the diameter — prevents the liner from inverting cleanly through the transition. Collapsed sections are the same problem. Pipe belly (a sag that creates a standing-water low point) is not corrected by lining — the liner will cure to the sagged geometry and the belly persists.

Active infiltration of groundwater or soil through large cracks can also interfere with liner inversion and adhesion. In those cases, we sometimes use grouting to seal the inflow points before lining. The pre-clean camera inspection is what identifies these disqualifying conditions — which is why there is no legitimate CIPP job that skips the inspection step.

Licensed C-36 #901735, Mainline No-Dig Trenchless Plumbing has been doing trenchless lateral work in the South Bay for 18+ years. We've lined pipes in Post-War tract slabs in Lawndale, under tight driveways in Old Lomita, and through the long shared laterals that are common in North Redondo Beach's Avenues neighborhood. The pipe condition determines the method — and the camera tells you the pipe condition.

If a camera inspection has already flagged your lateral, or if you're dealing with slow drains, root intrusion, or a sewer backup that keeps returning, CIPP lining may resolve it without touching your yard. The first step is always a camera scope to confirm the pipe is a candidate.
